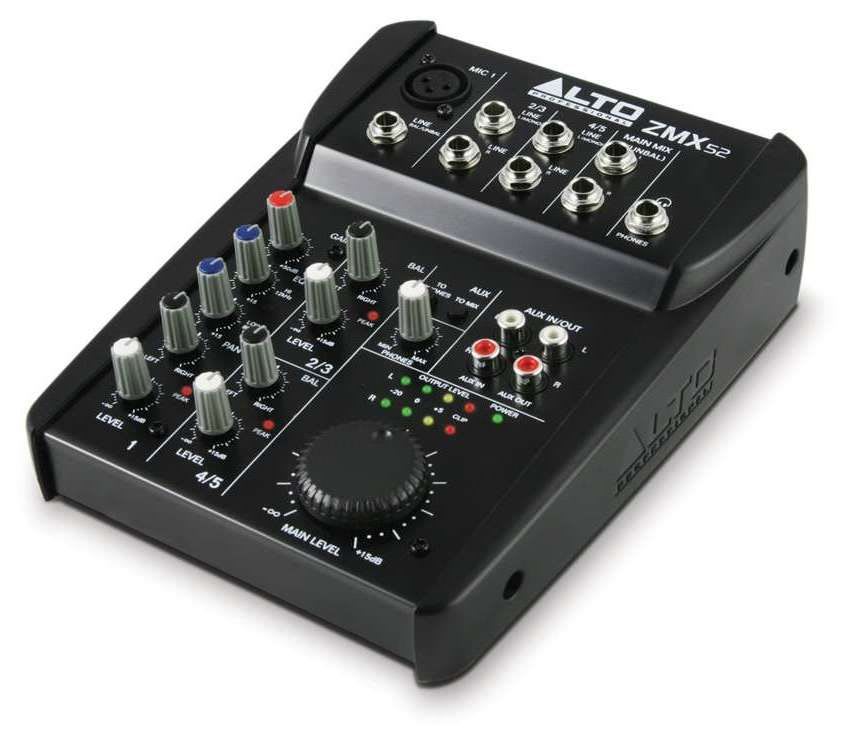

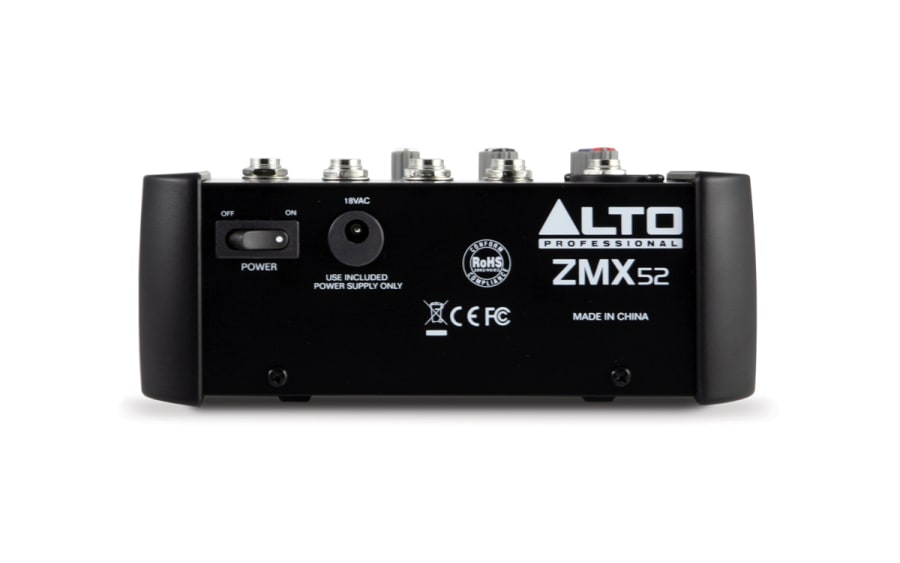

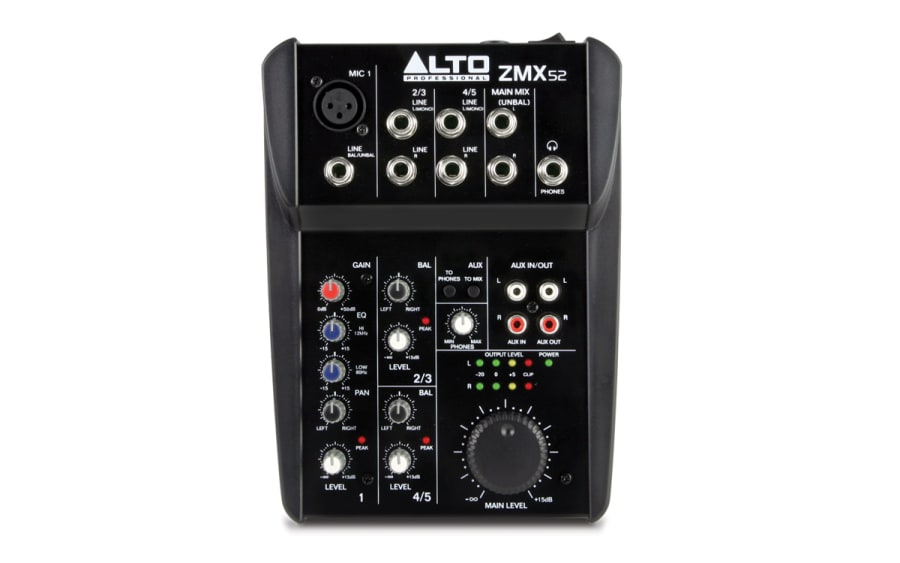

Alto Zephyr ZMX52 5-Channel Compact Mixer

Included

• 1 x Alto Zephyr ZMX52 5-Channel Compact Mixer


  Please note:

  You will require three mixing desks for a 3 channel Silent Disco

About

Our Alto Zepher ZMX52 5 channel mixer will enable you, amongst other things, to host one channel of your Silent Disco, along with a microphone, and a second music source that can play out over speakers, for example, providing a Disco at the same time as a Silent Disco.

Techie Stuff

All you actually need to know, is we will tell you what to plug in, and where, and as long as you follow our simple guide, complete with a picture of the completed set up, you'll be up and running very quickly. :-)

• Microphone Input: Electronically balanced, discrete input configuration
• Frequency Response: 20 Hz to 22 kHz, +/-1 dB
• Distortion( THD&N): ≦0.005% at +4 dBu, 1 kHz
• Gain range: 0 dB to 44 dB (Mic)
• Maximum Voltage Gain: 74 dB Ch. Mic Input → Main Mix out & Tape out, 80 dB Ch. Mic Input → Control room & phones
• SNR (Signal to Noise Rate): ≧110 dBu
• Phantom power (Mic Pin2/Pin3 and Pin1): +18 V

• Line Input: Electronically balanced
• Frequency Response: 20 Hz to 22 kHz, +/- 1 dB
• Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
• Gain range: 15 dBu to 30 dBu

• Line Input: Electronically balanced
• SNR (Signal to Noise Ratio): ≧110 dBu
• Frequency Response: 20 Hz to 22 kHz, +/- 1dB
• Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
• Gain range: 0 dBu
• Maximum Voltage Gain: 30 dB Ch. Line → Main Mix out

• Microphone Input: 3.9 kOhms
• All Other Input: 10 kOhms or Greater
• Tape Out: 1 kOhms
• All Other Outputs: 120 Ohms

• Mono channel: High ±15 dB @ 12 kHz, Low ±15 dB @ 80 Hz

• Adjacent Input: ≦-80 dB @ 1KHz (Ch. 1 - 6)
• Input to Output: ≦-75 dB @ 1KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)

• Output level: 0dBu Unbalanced, 1/4" Jacks
• Max out: +22dBu Unbalanced, 1/4" Jacks
• Noise (Bus noise): ≦-90 dB @ 20 Hz - 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)

• Power Supply: 18 V, 500 mA
• Rated Power Consumption: 9 W

• Dimensions (WxLxH): 128.1mm x 204mm x 38mm
• Weight: 1.65 lb

Please note:

• Equipment supplied by UK Silent Discos is only suitable for indoor or covered area use. We do not supply Silent Discos for outdoors.
